10 GPM Pneumatic Oil Control Valve Meter Nozzle with Flexible Spout X2976
10 GPM Pneumatic Oil Control Valve Meter Nozzle with Flexible Spout X2976

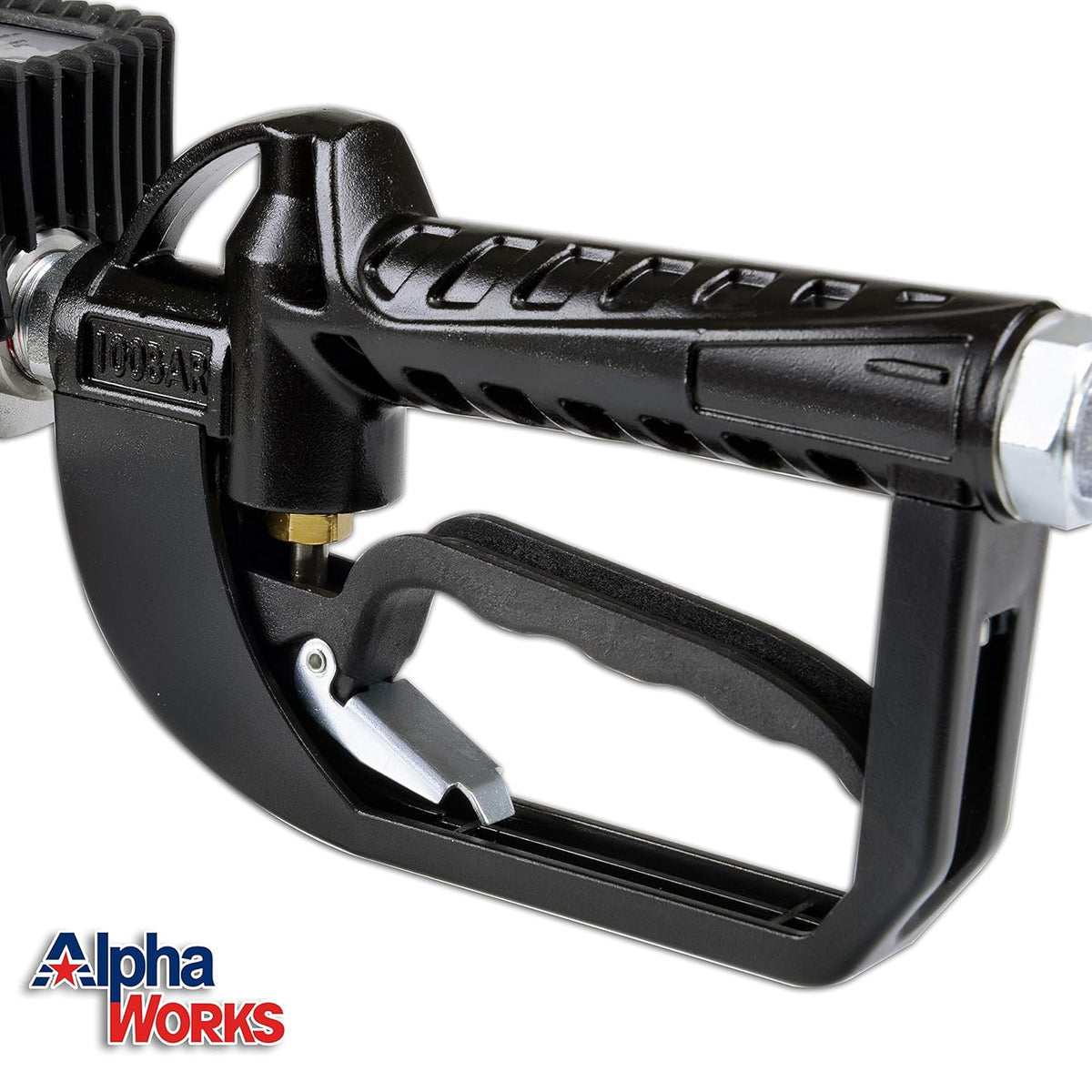

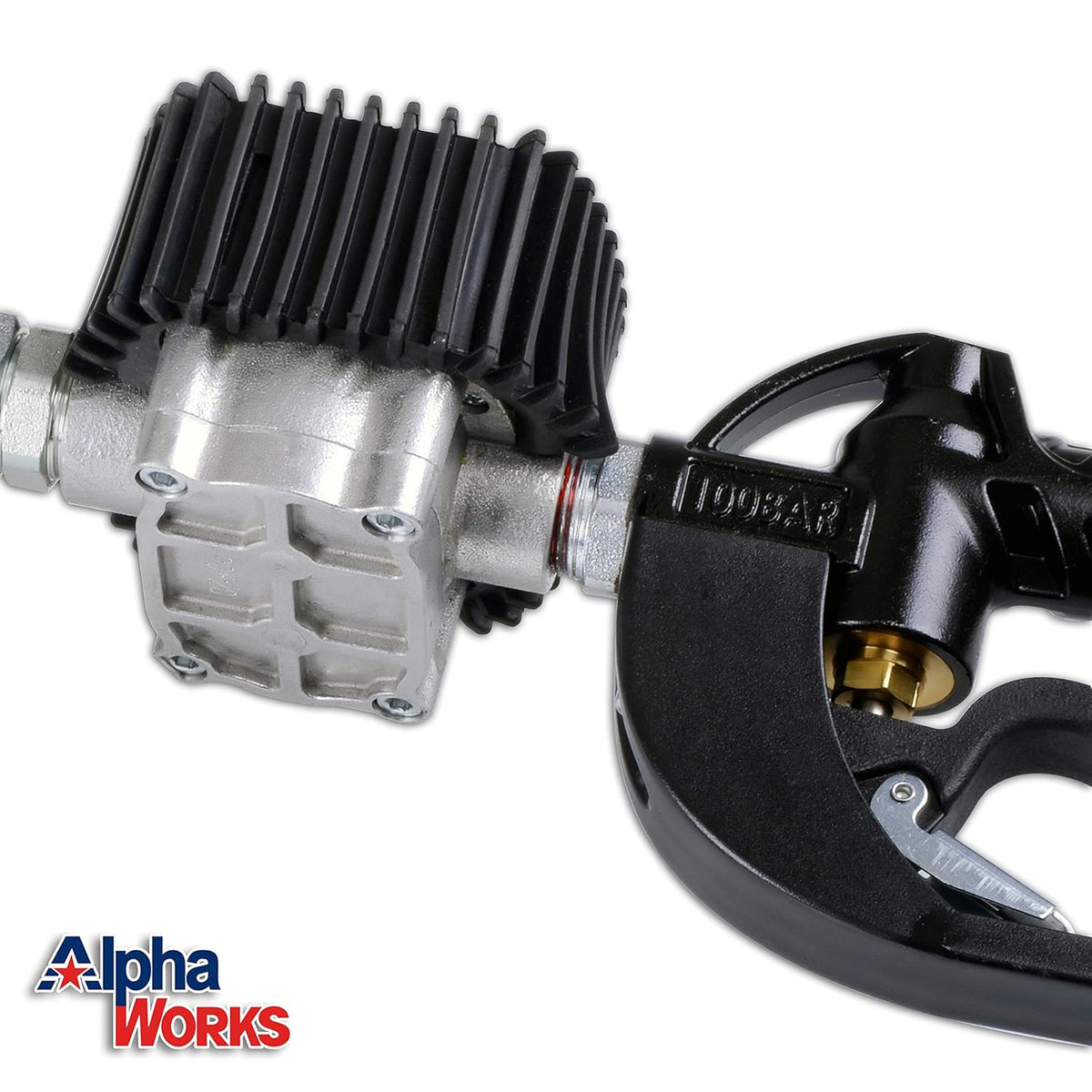

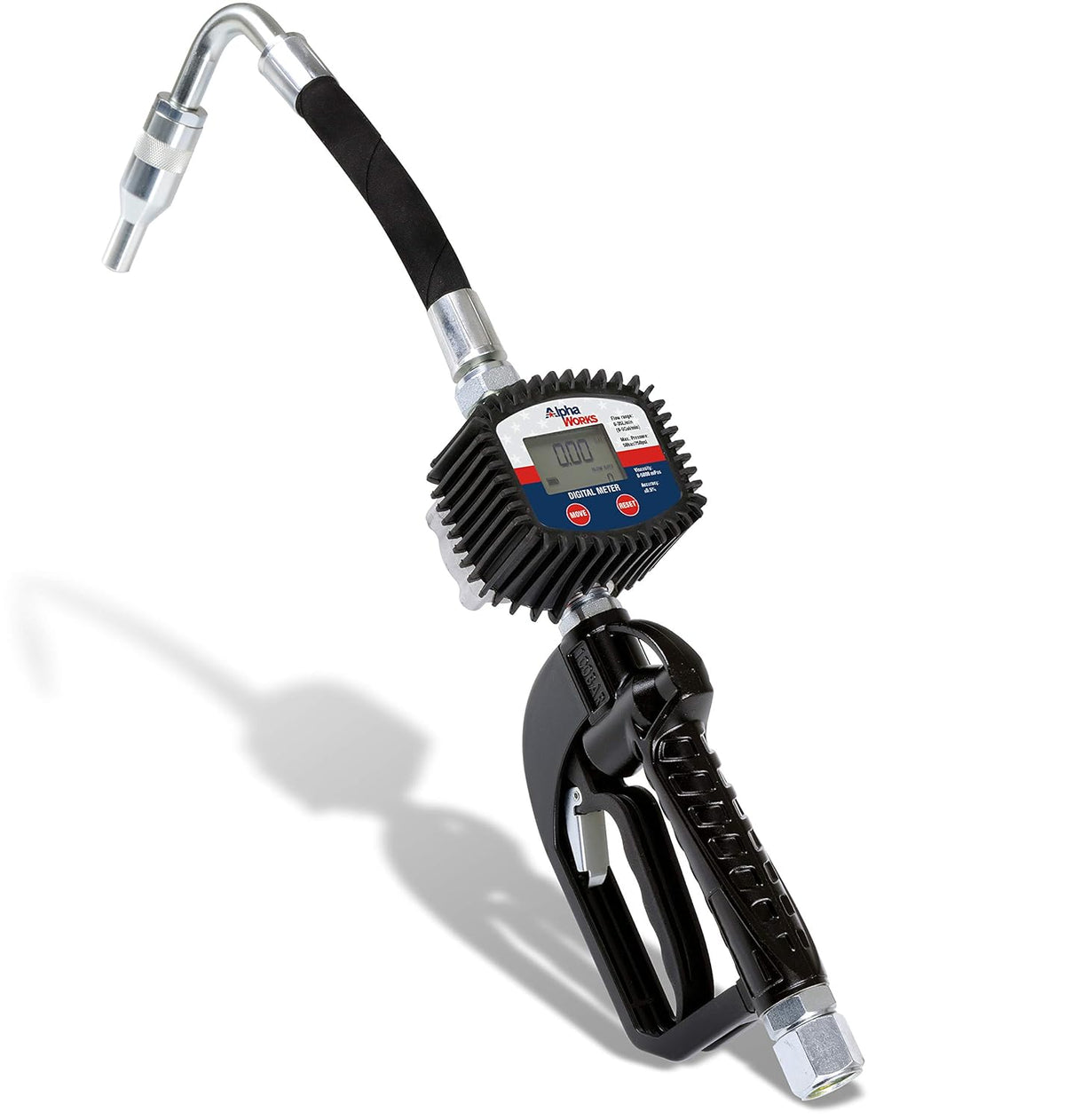

This AlphaWorks Commercial capable Digital Oil Control Valve is designed for all DIY or Professional applications. Capable of delivering fast flows & precision measuring in various calibrations. Built to meet & exceed industrial grade quality standards & provide dependable performance. Manufactured to OSHA & ISO Regulations, making this a solid choice for the everyday Hard Working American!

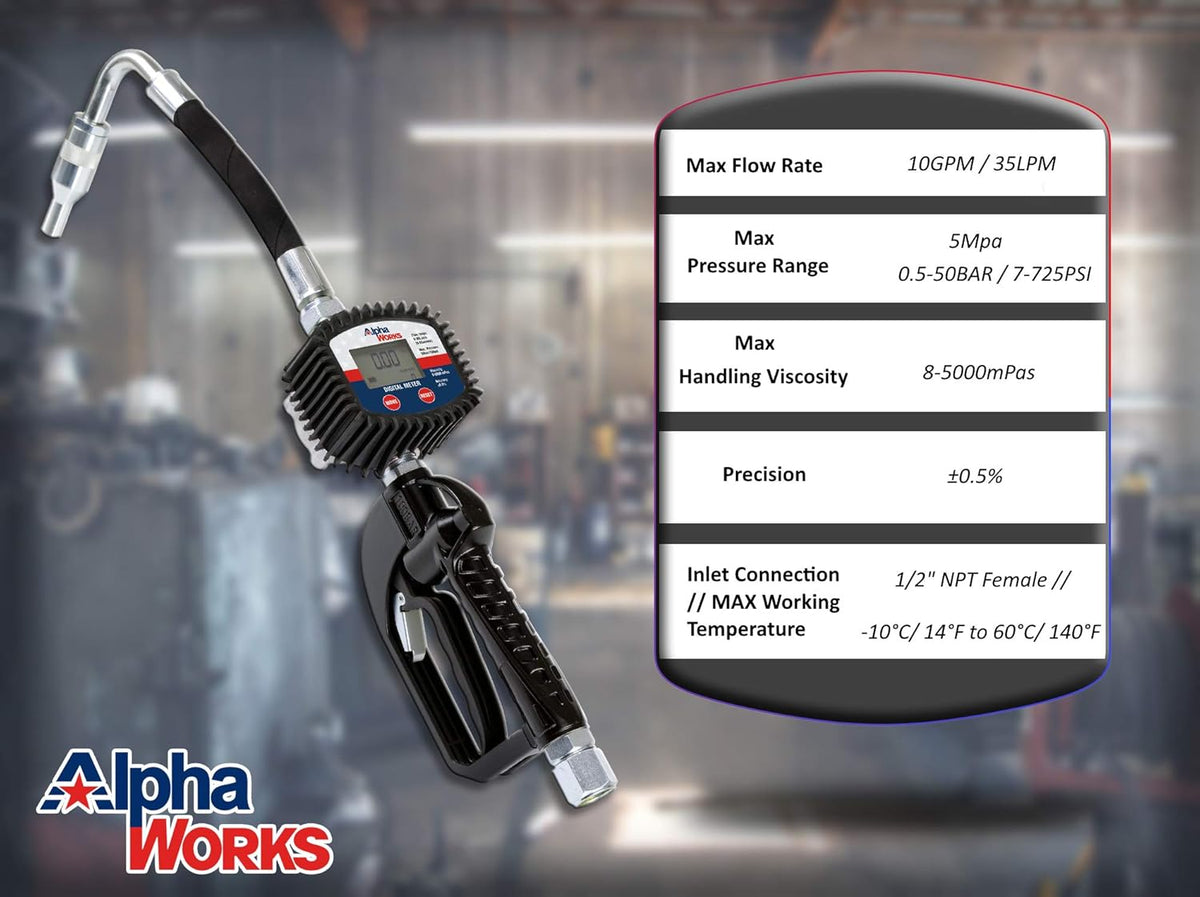

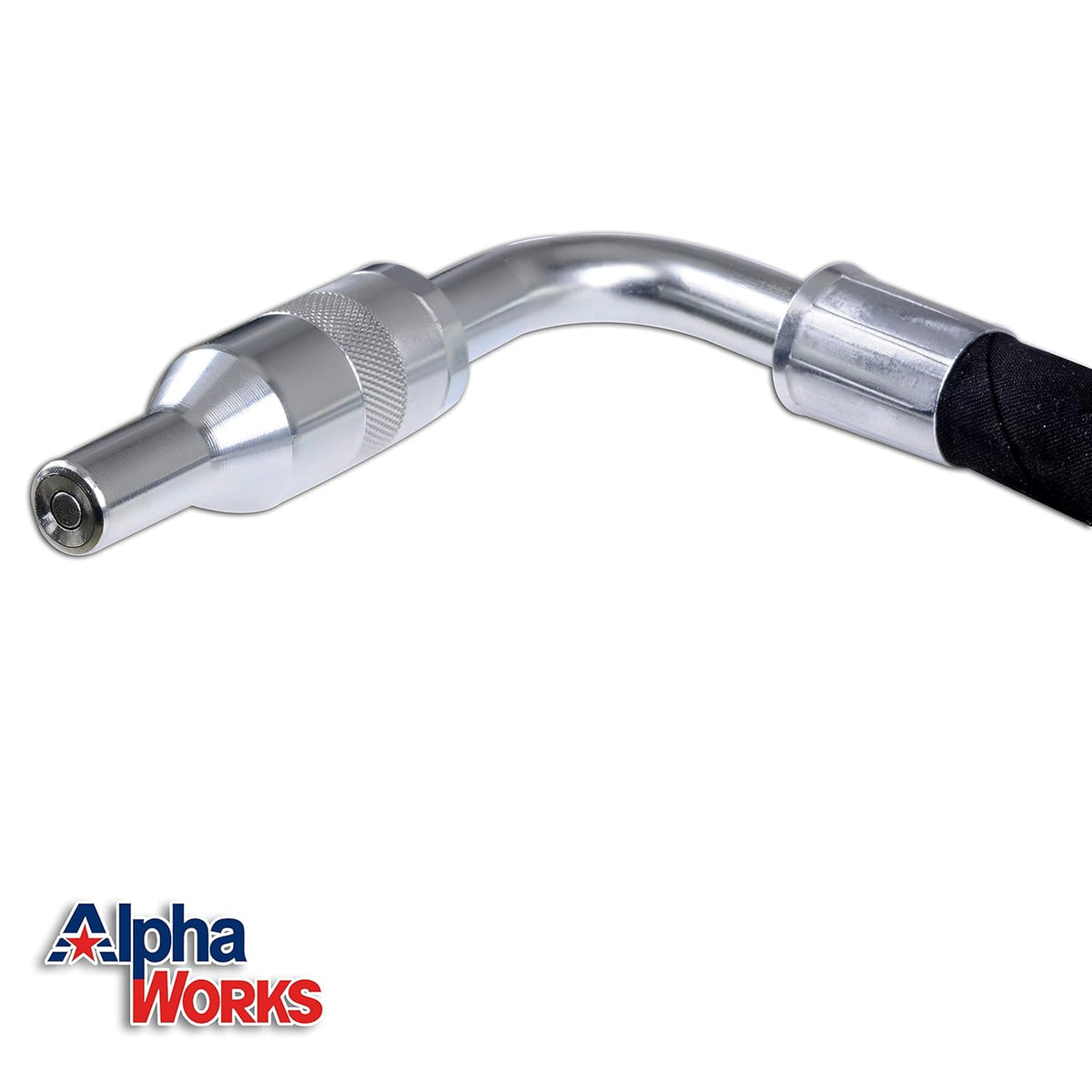

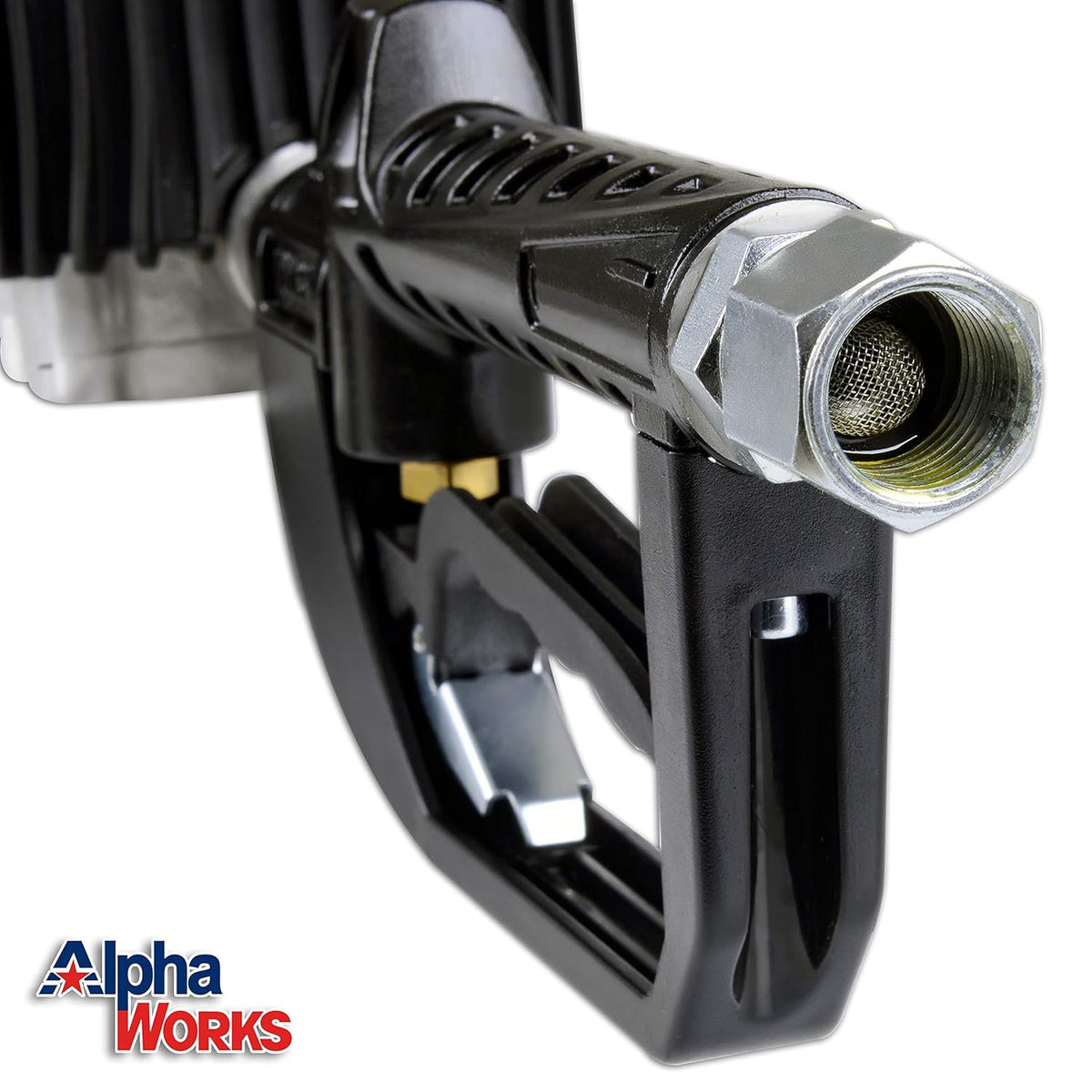

This AlphaWorks Digital Control Valve has a Max Flow rate of 10GPM / 35LPM, at a precision of ±0.5%, handling Viscosity of 8-5000mPas, w/ a Max Pressure Range of 5Mpa 0.5-50BAR / 7-725PSI. An Inlet Connection of 1/2" NPT Female connecting to industry standard oil hose reels & battery powered w/ 1x 3V CR2 Battery, all together weighting 2.86 lbs, including the Digital LCD Meter & flexible spout.

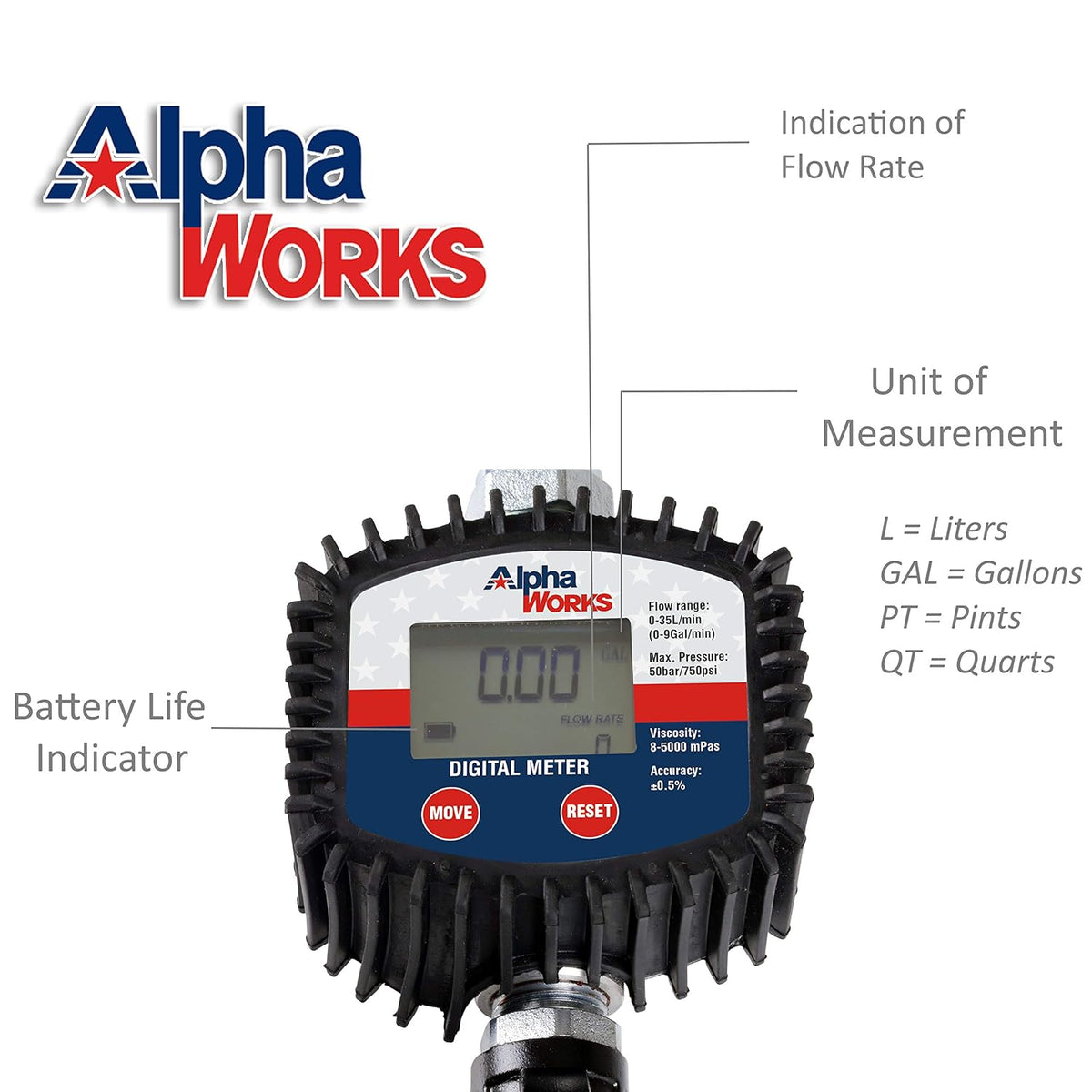

This LCD Digital Meter Control Valve has a 5-digit easy to read screen, w/ low battery indicator to avoid sudden shut-off & the ability to measure/dispense in various calibrations of Liters, Gallons, Pints & Quarts. Made of high quality aircraft aluminum to ensure the strength & durability, while designed to be oil & waterproof. We engineered a compact design w/ zero back pressure capability, delivering consistent measurements & smooth dispensing during operation.
| AlphaWorks Alexa Smart Extension Cord Reel Waterproof 13A 1625W 14AWG x 50" Feet | AlphaWorks AC/DC 12V/120V 8GPM Diesel Exhaust Fluid/UREA Pump or Pump & Kit | AlphaWorks Oil Transfer Pump Air Operated 7.4GPM/28LPM Double Action 3:1 | AmazonCommercial Heavy Duty Electric Utility Water Pump 330 GPH 1/6 HP 40' Feet | AmazonCommercial Heavy Duty Double Diaphragm Transfer Pump 1/2" 13GPM / 50LPM | AmazonCommercial DEF Transfer Pump Kit 8GPM/30LPM 120VAC 300W 2.5A | |
|---|---|---|---|---|---|---|
| Advanced Tech | Compatible with Alexa, Echo, Google Assistant , IFTTT , Smart Life & more! | N/A | N/A | N/A | N/A | N/A |
| Application | Control Independent Outlets, Supply Power & Set Timers. | Fuel Transfer of Flammable Liquids like: Gasoline, Diesel Kerosene & Mineral Spirits | Oil Transfer of Non-Flammable Liquids | Water Transfer of Non-Flammable Liquids: WATER ONLY (NO gasoline) | Fuel Transfer of Non-Flammable Liquids like: Diesel, Grease, Kerosene & Oil | Fuel Transfer of Non-Flammable Liquids like: DEF/UREA, Weak Acid, Weak Alkaline Fluid & Water |
| Cord / Tap Type & Length // Pump Type // Flow Rate | Premium Grade SJTOW Cable | Self-Priming Volumetric Rotary Vane // 15GPM / 57LPM | @ 8BAR / 245L / 64.7GAL // @ 115PSI / 8.6CFM / [14.6 M3/hour] | Self-Priming // 330GPH / 5.5GPM | Positive Displacement (aka Membrane Pump) / 13GPM / 50LPM | Single Phase Asynchronous (Induction) Motor // 8GPM / 30LPM or 6.6GPM / 25LPM |
| Amps / Voltage / MAX Watts / Motor // Current / Voltage // Max Fluid Pressure | 3-Wire Grounded / 14AWG / 60Hz | Positive Displacement // DC 12V 180W 22A 2400RPM | 350PSI // 24Bar | 115VAC 60Hz 288W 2.5A | 116PSI / 8Bar | Positive Displacement AC 120V 300W 2.5A 3380RPM or DC 12V 180W 15A |
| Prong & Plug Type // Hose I.D. / Length, Type // Inlet / Outlet | 3-prong plug NEMA 5-15R / NEMA 5-15P | Tank Adapter Male 2" / Female 1" // 16ft./5m Power Cable | Air Inlet 1/4" Quick Plug / 1/4" Female NPT // Oil Outlet of 3/4" Male to 1/2" NPT Male Reducer | 3-Prong NEMA 5-15R / NEMA 5-15P Plug // 18AWG Power Cord / 6' Garden Hose | 1/4" NPT // 1" NPT | 3/4" / 3/4" |
| Lead-In // Nozzle Cast Type // Model // Suction Length & Head Lift // Air Motor Effective Diameter: | 60" / (1.5m) | Aluminum // Auto // 3/4" | 63mm / 2.5" | 3/4” GHT Connections | 10ft (3m) / 164ft (49.9m) / 10ft (3m) | Plastic // Auto // 3/4" |
| Product Dimensions (Inches) | 16.9" x 6.9" x 14.8" | 16.5" x 14.5" x 13.5" | 4.1" x 4.1" x 31" | 8" x 8" x 7" | 9" x 6.7" x 11.6" | 17" x 9" x 17" |
| Weight (pounds) | 18 lbs | 28 lbs | 10.5 lbs | 3.5 lbs | 12 lbs | 29 lbs |
| Brand | AlphaWorks | AlphaWorks | AlphaWorks | Amazon Commercial | Amazon Commercial | Amazon Commercial |
