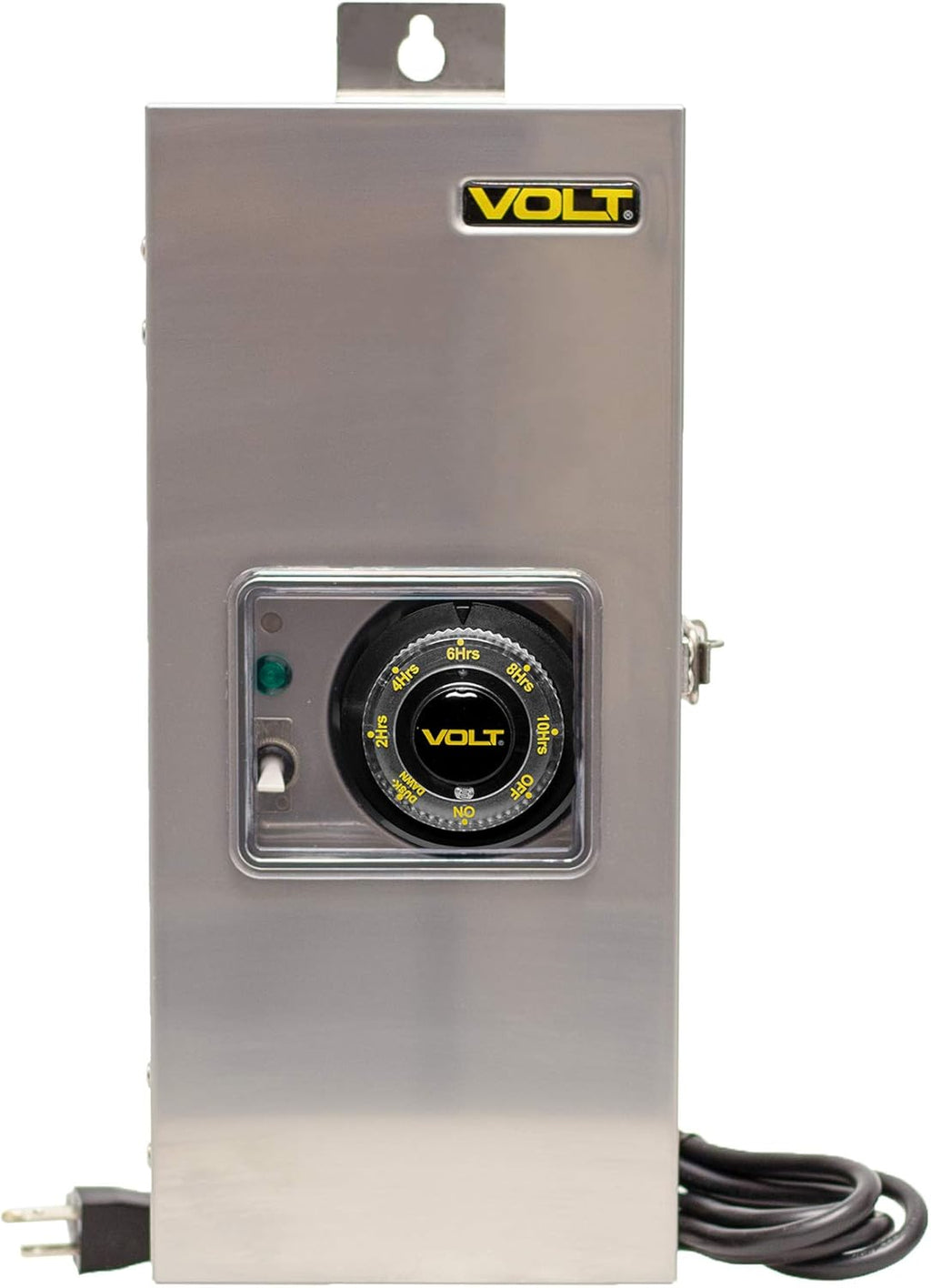

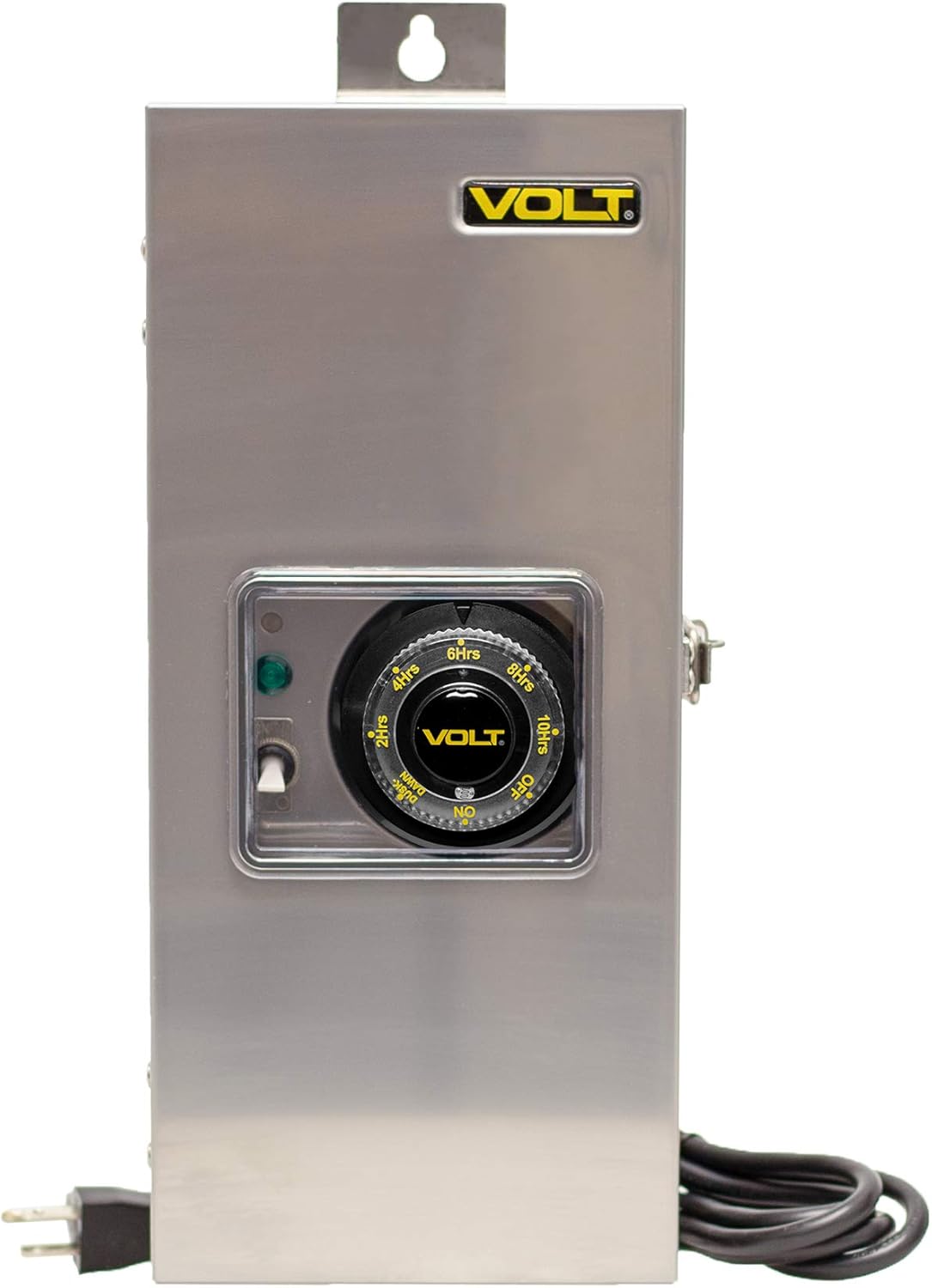

300W LED Low Voltage Transformer (12V/15V) Q562
Sale price
$26.99
Regular price $103.94
Skip to product information

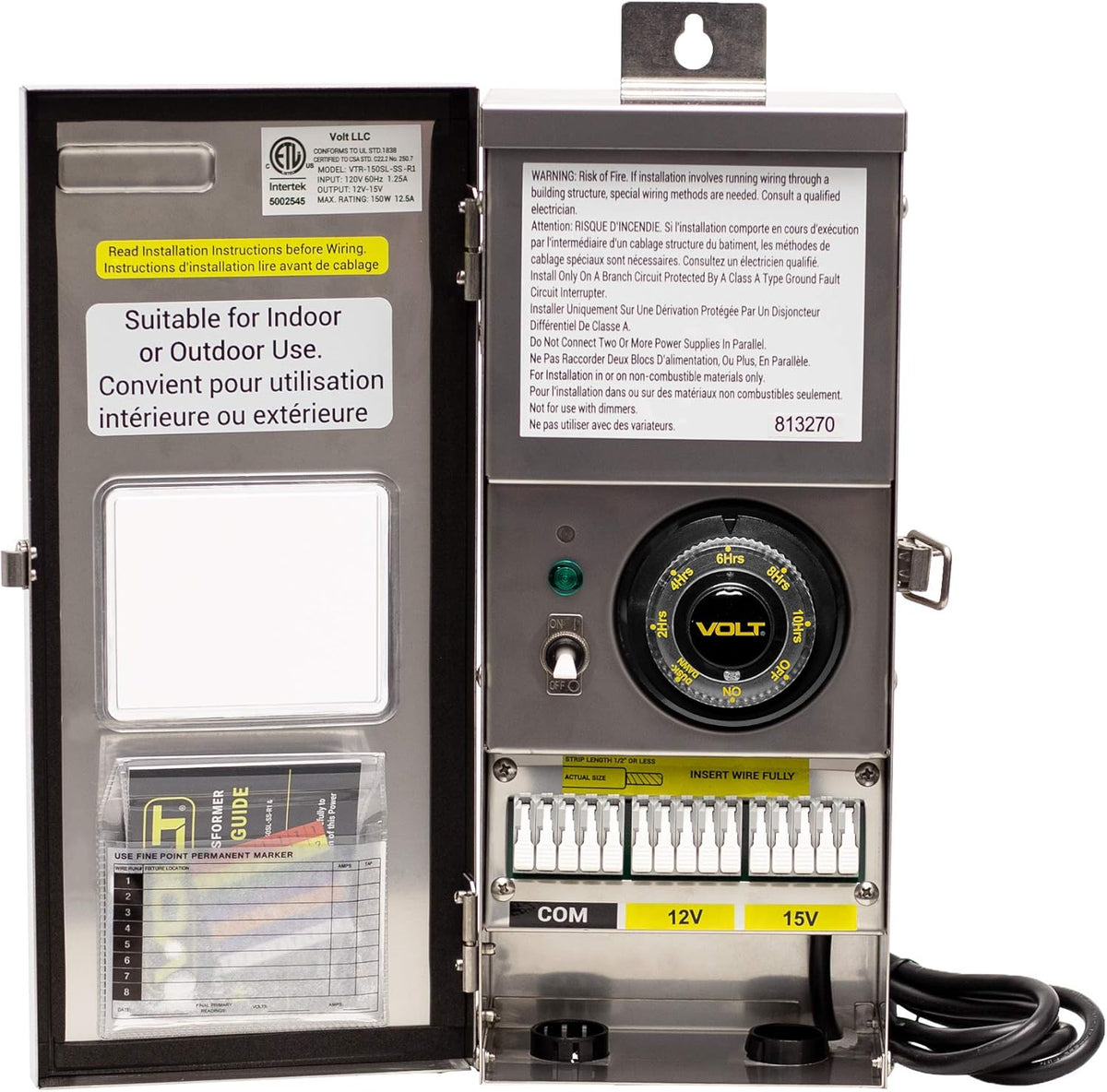

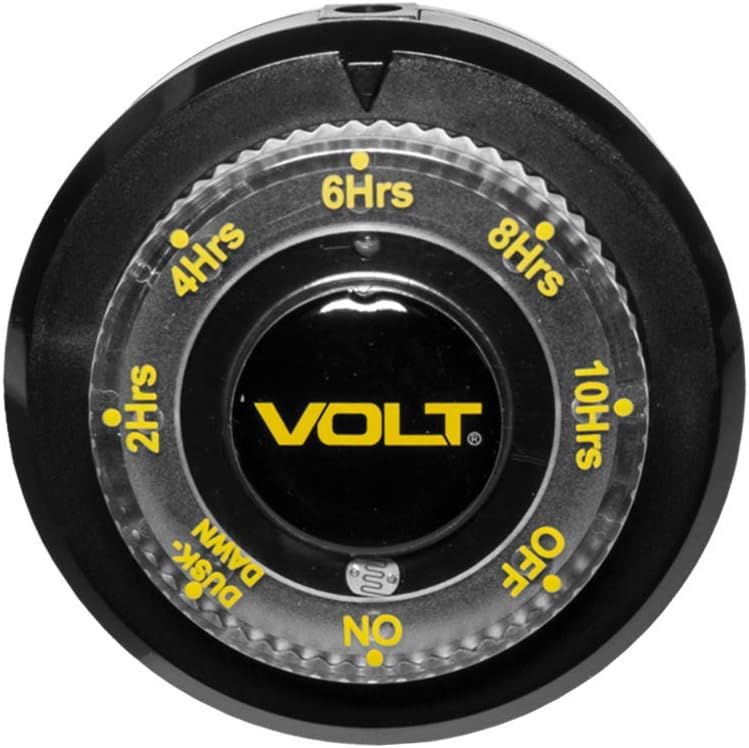

LOW PROFILE MAGNETIC TRANSFORMER – To make this transformer slimmer, lighter and simpler to install, we eliminated unnecessary voltage taps. Just use the 12V and 15V taps. That's all you need for any medium-sized (up to 300W) LED landscape lighting system. No need to worry about voltage loss.MODULAR TIMER WITH PHOTOCELL INCLUDED - Visible through the housing window, this timer can be set for simple dusk-to-dawn operation or set to turn off after a certain number of hours. The photocell is built into the timer.EASY TO INSTALL - The clamp-type terminal blocks are impressively easy to use - taking seconds to connect - compared to many minutes of frustrating work for standard terminal blocks. Just insert the stripped wire and close the clamp! Accepts up to 10-gauge wire.HIGH PERFORMANCE – This transformer's toroidal core allows for more reliable, efficient, cooler and quieter operation than comparable EI laminated types. It's also superior to electronic transformers, which may not be compatible with LED circuits, suffer from extensive voltage loss, and are subject to overheating and premature failure.LIFETIME WARRANTY – With an industry-leading warranty, this Slim Line Transformer is designed for a lifetime of worry-free use - we guarantee it. The core, stainless steel enclosure and all electrical components are backed by our lifetime warranty.
300W LED Low Voltage Transformer (12V/15V) Q562
Sale price
$26.99
Regular price $103.94
Shipping calculated at checkout.
| VOLT 100W Slim Line Transformer | VOLT 150W Slim Line Transformer | VOLT 300W Slim Line Transformer | VOLT 150W Clamp Connect Transformer | VOLT 300W Clamp Connect Transformer | VOLT 600W Clamp Connect Transformer | |
|---|---|---|---|---|---|---|
| Construction | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover | Non-brushed 304 stainless steel with removable cover |
| Power Cord | 60″ Black SJTW Water Resistant VW-1 OR FT1 105° C 300V 18AWGX3C UE-321 | 60″ Black SJTW Water Resistant VW-1 OR FT1 105° C 300V 18AWGX3C UE-321 | 60″ Black SJTW Water Resistant VW-1 OR FT1 105° C 300V 18AWGX3C UE-321 | 60″ black 18 AWG SJTW cord and plug set | 60″ black 18 AWG SJTW cord and plug set | 60″ black 18 AWG SJTW cord and plug set |
| Certification | ETL Listed | ETL Listed | ETL Listed | ETL Listed | ETL Listed | ETL Listed |
| Maximum Draw | 100W | 150W | 300W | 150W | 300W | 600W |
| Input | 120V 60Hz | 120V 60Hz | 120V 60Hz | 120V 60Hz | 120V 60Hz | 120V 60Hz |
| Voltage Tap Outputs | 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) | 12V & 15V (UL 1838 compliant) |
| Terminal Wire Rating | Up to 10-gauge wire | Up to 10-gauge wire | Up to 10-gauge wire | Up to 10-gauge wire | Up to 10-gauge wire | Up to 10-gauge wire |
| Circuit Protection | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 7A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 12.5A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 25A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 25A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (1) 25A Magnetic Circuit Breaker | Primary: Automatic (auto reset) Thermal Breaker in core; Secondary: (2) 25A Magnetic Circuit Breakers |

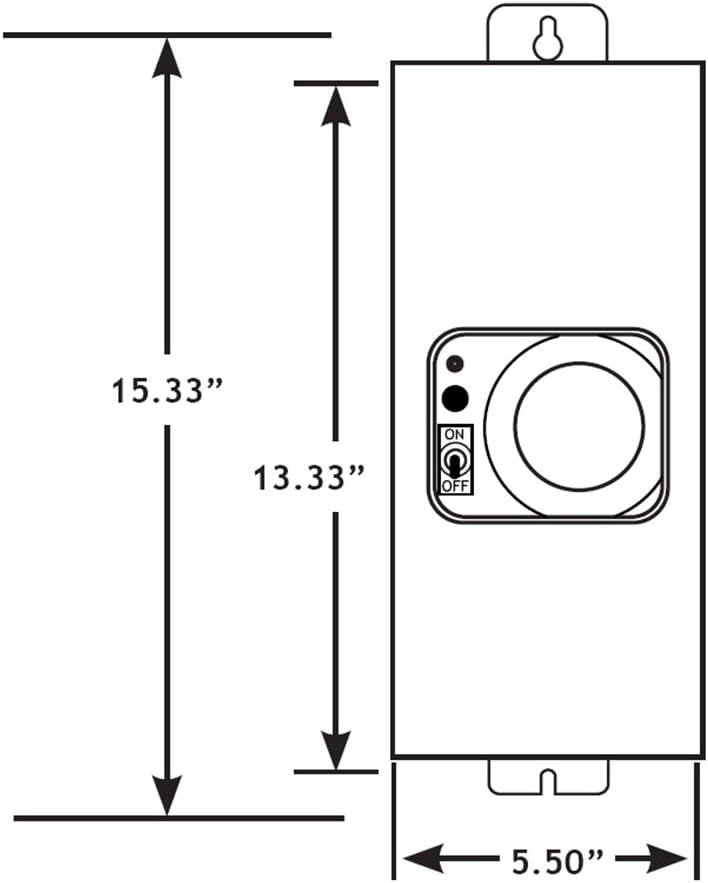

| Dimensions | 14.40″ height, 5.27″ width, 3.70″ depth | 15.33″ height, 5.5″ width, 3.70″ depth | 15.33″ height, 5.5″ width, 3.70″ depth | 13.19" height x 6.00" width x 5.41" depth | 14.56" height x 7.13" width x 5.90" depth | 15.81" height x 8.25" width x 7.16" depth |
| Weight | 10 lbs | 13 lbs | 13 lbs | 13 lbs | 13 lbs | 21 lbs |
